Laars LX/LT Heaters
 |
POOL & SPA HEATING SYSTEMS
|
|
Introducing the first pool/spa heater so advanced it's simple. |
|
Our exclusive digital controls provide more precision and less hassle. And inside the incredibly reliable LX/LT heaters you'll find plenty of features to warm up to:
• Fan assisted controlled combustion for constant efficiency - 83% • Corrosion resistant polymer headers for improved circulation • Contemporary design to blend into any backyard landscape • Capable of automating Pool/Spa |
| Both the LX and LT models include automation-ready features to provide convenient pool-to-spa switching. |
 |
The LX control and user-friendly interface is a key element in you RS™ controlled pool/spa environment. |  |
The LT has a simplified dual electronic thermostat. |
|
HOW TO CHOOSE A POOL HEATER SIZE
First determine the desired temperature difference by subtracting the coldest average air temperature when the pool will be in use from the desired pool water temperature. [Example: 85F (desired pool water temperature) - 60F (temperature when pool is opened) = 25F difference.] Then, using the Pool Heater Sizing chart below, select the appropriate heater model number. Sizing chart based on 3-1/2 mph average wind and average pool depth of 5-1/2 feet. Blue figures based on zero wind. HOW TO CHOOSE A SPA HEATER SIZE Identify the number of gallons your spa holds. Decide the heat-up time desired, and note on the chart which Laars LX/LT model is recommended. The chart indicates the approximate time required to raise the spa temperature 30F. A model number 250 heater on a 600 gallon spa will take approximately 45 minutes to raise temperature approximately 30F (depending on wind, insulation, etc.) Please see your area sales rep for more information. |
|
|

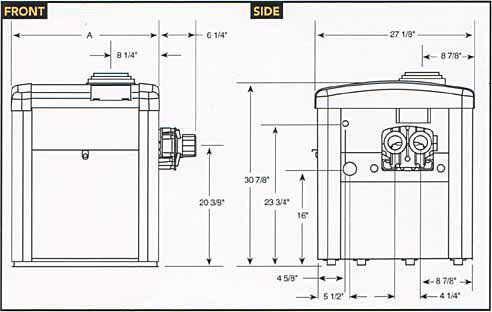

| MODEL | WIDTH | HEIGHT | DEPTH | VENT | SHIPPING WEIGHT |
HEATER WEIGHT |
| 250 | 28 1/4" | 30 7/8" | 27 1/8" | 7.0" | 206 lbs. | 172 lbs. |
| 400 | 34 1/4" | 30 7/8" | 27 1/8" | 9.0" | 318 lbs. | 216 lbs. |
| Temp. Diff. | 400 | |
| 15F | 1333-1778 | 2133-2844 |
| 20F | 1000-1333 | 1600-2133 |
| 25F | 800-1067 | 1280-1770 |
| 30F | 687-889 | 1067-1422 |
| 35F | 571-762 | 914-1219 |
| Model Number | 400 | |
| Spa Size (Gal.) | Time to Heat Spa 30F (Minutes) | |
| 200 | 15 | 9 |
| 400 | 30 | 19 |
| 600 | 45 | 28 |
| 800 | 60 | 37 |
| 1000 | 75 | 47 |
